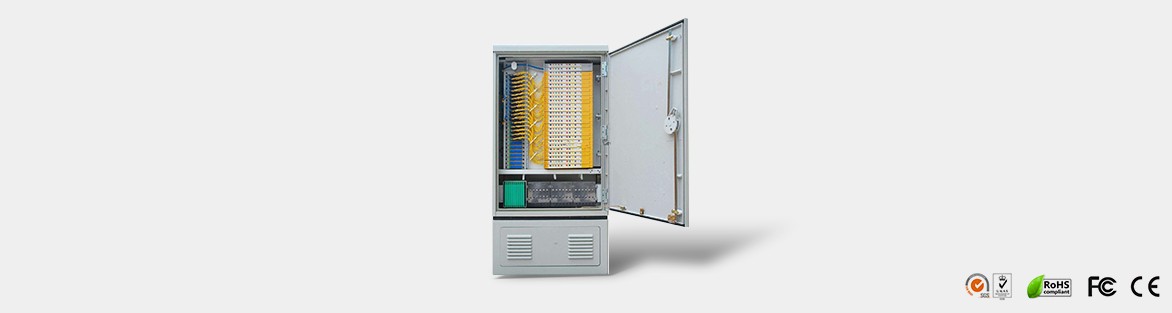

产品名称： Fiber Optic Cabinet

上市日期：2017-12-13

Overview
产品规格
详细参数

For reservation, straight-through, fiber allocation and scheduling for the node of feed cable ,distribution cable.

The cabinet material is divided into two kinds: stainless steel and SMC . Novel structural design and deffective in rain-proof, dust-proof,pests-proof.

Adapting various bad weather condition, with reliable sealing, water-proof and damp proof Available for different type of adaptor such as FC,SC,ST The bottom end is assembled with spare splice tray, for direct fusion and connection of trunk optical cables and distribution cables.

APPLICATION

FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution

FEATURES

Matterial: Cold rolled steel wtih electrostatic spraying.

Capacity can be flexibly customized as required

Installation is quick and convenient

Built-in direct splice unit is capable for providing direct connection function.

Perfect design of fiber wiring routing could facilitate management and maintenance of fibers.

With secure and reliable fastening and grounding protection devices for the optic fiber

Applicable to strap-shaped and non-strap shaped fibers.

PRODUCT PHOTOS
