DYS MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
APPLICATION
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
FEATURES
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

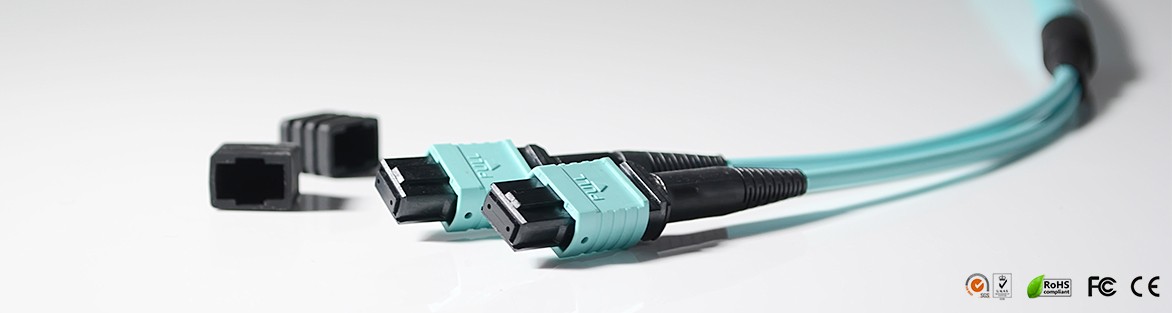

PRODUCT PHOTOS
PRODUCT PARAMETERS
Performance Level | Standard | Elite |
Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 |
48F/APC | ≤0.75 | ≥60 |
|
|
MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 |
24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 |
48F/PC | ≤0.50 | ≥20 |
|
|
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
Mechanical Properties |
Item | Criteria | Conformance |
△IL After 50 Matings | MPO/MTP | ≤0.3dB | GR-1435 |
△IL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 |
Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) |
Min Bend Radius (Static ) | 15*OD (Cable Diameter) |
Environment Conditions |
Item | Criteria | Conformance |
Operation Temperature | -40~60°C | IEC 61753-1 |
Storage Temperature | -45~85°C |
