产品名称： TW/STW Outdoor Cable Assembly

上市日期：2018-09-19

Overview
产品规格
详细参数

APPLICATION

Fiber optic communications in harsh outdoor environments

Outdoor communication equipment connection

waterproof fiber equipment

FTTX wiring project

FEATURES

IP68 water and dust protection

Easy Operation, reliable and cost-effective installation

has good performance on mating with Optitap and Mini(SC/APC) adapter.

Unique design of housing

Cable can be Armoured or not armoured.

PRODUCT PHOTOS

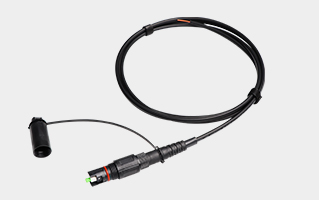

STW	TW	TW (MPO)


TW Connect with MiniSc(HuaWei)Adapter	TW Connect with Optitap(Corning) Adapter

PRODUCT PARAMETERS

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃
