产品名称: MT Patch Cords
上市日期:2018-09-14
  • Overview
  • 产品规格
  • 详细参数

APPLICATION

QSFPquad small form-factor pluggable

SFP+active optical cables

Parallel light optical transceiver module

Super computers

Communication

Military applications

Data centers




FEATURES

Transmission rate: 40Gbps/100Gbps/168Gbps

GR-1435 compliant

Simple structure easy to locate

Low cost

Customized products available





PRODUCT PHOTOS



MT Patch CordsMT Patch CordsMT Patch Cords



Fiber Optic media converterFiber Optic media converterFiber Optic media converter




PRODUCT PARAMETERS



Performance Level

Standard

Elite

Connector

Mode

Endface

IL(max) (dB)

RL(min) (dB)

IL(max) (dB)

RL(min) (dB)

MT

SM

12F/APC

0.50

60

0.35

60

MM

12F/PC

0.50

20

0.35

20





Note:

1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;

2.Standard conformance: GR-326,GR-1435.





Environment Conditions

Item

Criteria

Conformance

Operation Temperature

-40~60°C

IEC 61753-1

Storage Temperature

-45~85°C




File preview
Hot Products / Hot Products More
2018 - 09 - 19
APPLICATIONFTTHOutdoor AreasHarsh Environment FEATURESSingle fiber, SC-based connectorBird proof and rodent resistantIP68 water and dust protection Low profile in-line receptacle availableNo installation tools requiredIn-line connection availableCable diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm  PRODUCT PHOTOSH optic with indoor cable H optic with round drop cableFemale H Optic ...
2018 - 04 - 10

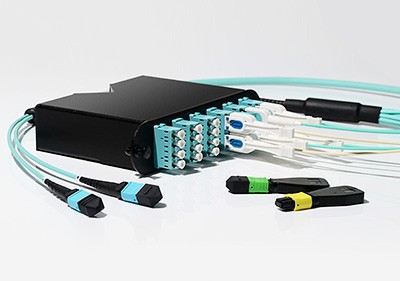

DYS MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost. MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged m...
2017 - 12 - 05

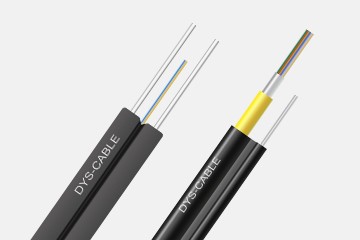

Drop cables are located on the subscriber end to connect the terminal of a distribution cable to a subscriber’s premises. They are typicality small diameter, low fiber count cables with limited unsupported span lengths, which can be installed aerially, underground or buried. As it is used in outdoor, drop cable shall have a minimum pull strength of 1335 Newtons according to the industry standard. ...
